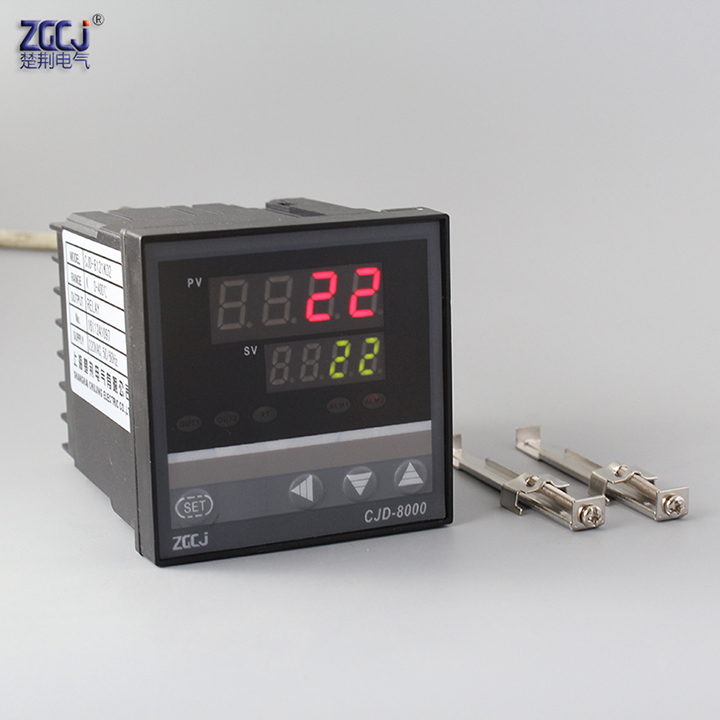

CJD-8121K02 temperature controller

Features:

Input : thermocouple or Thermal resistance (K , J ,E ,PT100,Cu50,N,R,etc..)  ( it can be selected by user , it is Adjustable)

Input defaults: K type thermocouple input

Output: 3 relays output  (1 main control output, 2 alarm output)

Temperature range: 0-400 Degrees Celsius (Temperature range is adjustable)

Power supply of controller: AC 100-240V, 50/60Hz

Dimension: 72*72*80mm

Install cutout size : 68*68mm
